GPU Core Reballing vs. Reflowing: Which Repair Method Is Better?

When an expensive graphics card or AI GPU begins artifacting, crashing under load, or failing to post, the root cause is frequently related to the BGA (Ball Grid Array) connections underneath the core processor. Due to thousands of thermal cycles (heating up and cooling down), the solder balls connecting the GPU to the motherboard can develop a micro crack or degrade.

To fix this, you will generally see repair shops offer two completely different services: Reflowing or Reballing.

Understanding the structural difference between these two methods is crucial to saving your hardware and your money.

What is a GPU Reflow?

A GPU reflow is the process of heating up the graphics processor and the surrounding circuit board with the goal of melting the existing solder underneath so it reconnects.

While it sounds straightforward, a simple reflow is often a temporary fix. Here is why:

  • Oxidized Solder Joints: Micro-fractures can oxidise over time, preventing reliable reflow bonding. Simply reheating oxidized solder will not create a clean, solid structural bond. The underlying weakness often remains, meaning the fault may return after a relatively short period of use.
  • The “Heat Gun” Danger: Many repair providers use generic heat guns or uncalibrated hot-air plates without proper thermal monitoring. Overheating the card places massive mechanical stress on the board, often warping the PCB or potentially causing irreversible damage to the GPU chip assembly, PCB and surrounding components.

The Danger of Non-Profiled Heating Setups

The absolute biggest risk to a graphics card during a low-cost repair approach is the use of uncontrolled or non-profiled heating equipment. Lower-tier repair shops often attempt to reflow or desolder a GPU using basic handheld heat guns or uncalibrated infrared hot plates.

In professional component-level engineering, heating a circuit board isn’t just about making it hot—it is about following a strict multistage thermal profile.

GPU Core Reballing vs. Reflowing: Understanding the Difference

Thermal profiling directly impacts the soldering stage, which is often the most critical for ensuring accuracy. Source: ALLPCB

When an amateur uses uncalibrated, non-profiled equipment, they bypass this delicate curve completely. This triggers three devastating physical failures:

  • Thermal Shock & PCB Warping: Motherboards are made of multiple laminated layers of fiberglass and copper traces. If you blast one spot with a heat gun, that area expands rapidly while the cold surrounding board stays still. This massive temperature differential warps the PCB, instantly tearing apart invisible internal traces.
  • Internal Silicon Delamination (“Popcorning”): A GPU core isn’t a solid block of plastic; it contains millions of microscopic circuits sealed together. If heated too fast without a controlled “Soak” phase, microscopic moisture trapped inside the chip vaporizes instantly, expanding into steam and literally tearing the internal silicon layers apart from the inside out.
  • The “Popcorn Effect” Visual: You can often spot a card ruined by looking for tiny physical blisters or bubbles on the surface of the GPU substrate clear evidence of uncontrolled thermal destruction.

What is Professional GPU Reballing?

GPU reballing is a highly advanced, component-level engineering procedure. Instead of trying to melt broken old solder, a reball completely replaces the underlying connections.

Our structural workflow at AKM Repairs requires specialized machinery and strict precision:

  • De-soldering & Extraction: Industrial BGA Rework Station. The graphics card is mounted onto a professional BGA rework machine. Using a strictly controlled thermal profile, the board is heated uniformly to safely lift the massive GPU core off the PCB without warping either piece.
  • Microscopic Cleaning: Prepping the Pads. All the old, oxidized factory solder is meticulously cleaned and wicked away from both the motherboard pads and the underside of the GPU chip.
  • Re-Arraying the Core: Precision Stencil Grid. Using a laser-cut steel stencil custom-matched to the GPU chip, an entire grid of brand-new, high-quality solder balls is precisely applied to the underside of the processor.
  • Reflow Realignment: Re-mating the Chip. The newly balled GPU core is perfectly realigned to the PCB and soldered back into place using a precise, factory-grade automated heating profile to ensure uniform adhesion across all pins.

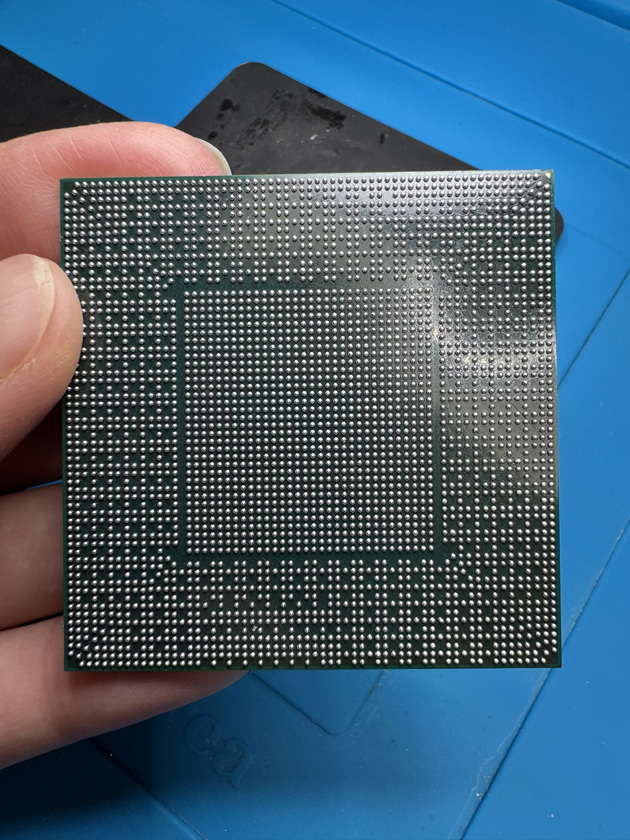

GPU Core Reball

GPU Core Reball

Direct Comparison: At a Glance

Feature

Reflowing

Professional Reballing

The Action

Re-melts old, cracked, oxidized solder.

Replaces 100% of the old solder with fresh joints.

Equipment Used

Handheld heat guns or basic hot air plates.

Industrial BGA Rework Station with thermal sensors.

Risk of Board Damage

Often uncontrolled or non-profiled heating equipment in lower-tier repair setups.

Low. Thermally monitored to protect delicate traces.

Long-Term Reliability

Poor. Often temporary and may fail over time.

Excellent. Restores the card to original factory durability.

Best Used For

Basic diagnostics to confirm a dead BGA joint. Temporary restoration of suspected BGA connection faults.

Long-term repair of confirmed BGA connection faults.

Proper Diagnostics Come First

Not every graphics card exhibiting crashes, artefacts, or display issues requires a GPU reball. Similar symptoms can also be caused by faulty memory chips, power delivery circuits, damaged components, firmware issues, or other board-level faults.

At AKM Repairs, every card undergoes detailed diagnostics before a reball is recommended. This ensures that the root cause of the fault is identified and that unnecessary repairs are avoided. Also it is a time consuming and risky procedure that we carry out as a last resort.

The Verdict: Don’t Let Cheap Methods Destroy Your Hardware

Unfortunately, many service centres market a quick, 10-minute “reflow” as a permanent repair to cut corners. Because they lack the expensive equipment and specialized engineering skills required to lift a BGA chip safely, they let customers down massively when the card dies again shortly after.

At AKM Repairs, we don’t believe in one-size-fits-all short-cuts. We treat high-end graphics cards and enterprise hardware with the technical respect they require. If diagnostics confirm a BGA-related fault, professional GPU reballing is generally considered the most comprehensive and reliable repair method when a BGA connection fault has been correctly diagnosed.
